High Pressure Retrievable Packer CHAMP Packer DST Hydraulic Setting Tool

Introudction of Full Bore Retrievable Packer

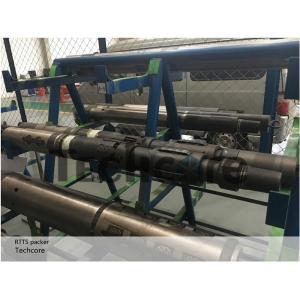

The High Press CHAMP Packer is the CHAMP V Packer, that is improved from RTTS Packer. Compared with RTTS Packer,the CHAMP IV Packer has a concentric bypass and the working pressure of the CHAMP packer can be reached to 15000 psi. The CHAMP IV Packer has the capability of circulating below the packer and other parts have the same function as RTTS Packer.

When the CHAMP Packer is going in the hole, the bypass is held open until slips are set by the J-Slot that controls the mechanical slips. The bypass of the CHAMP packer is held closed by a balancing piston, the tool uses work string pressure to place a downward force on the balancing coupling, which can prevent the bypass from being pumped open.

Features and Benefits of the CHAMP Packer

* The CHAMP packer is applied in highly deviated wells or where pipe manipulation is difficult.

* The CHAMP packered is Picked straight up to open the bypass

* It is easy to relocate the CHAMP packer in multiple zones during a single trip for treating, testing or

squeezing.

* The concentric bypass valve on the CHAMP Packer allows a larger bypass flow area.

Technical parameter of CHAMP Packer

DST High Pressure Retrievable Packer CHAMP Packer 7" -15000psi

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
