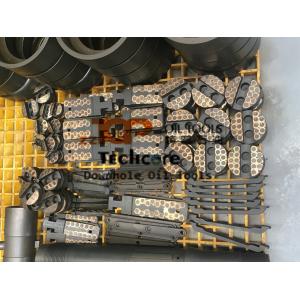

Full Bore Retrievable Packer Parts RTTS Packer Redress Kit DST Tools

The RTTS packer is a kind of mechanical setting retrievable packer with full bore design. The main body of the RTTS Packer includes a J-slot mechanism, mechanical slips, packing element, and hydraulic slips. Large, heavy-duty slips are used in the hydraulic hold-down mechanism and help prevent the tool from being pumped up the hole. The packer is equipped with the drag block.The Construction of the RTTS packer is shown in the accompanying figure. When starting the RTTS packer into the hole, place J-slot in the drag block sleeve in the locked position.

When unsetting the packer,y ou must open the circulating valve to equalize across the packer, then the round hydraulic hold down slip to retract, raise tubing up, the pacer can be released. The index lug will ride automatically the ramp to the locking position.

* The spare parts of RTTS Packer are interchangeable with Halliburton Type.

Advantage of Techcore Oil Tools

Techcore Downhole Tools jointed with ZZ TOP Oil Tools, expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.

* Drill stem testing tools are available for cased hole, open hole and slim hole including:

Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint, downhole tester valve, select tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.

Welcome to contact us for more information!

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
